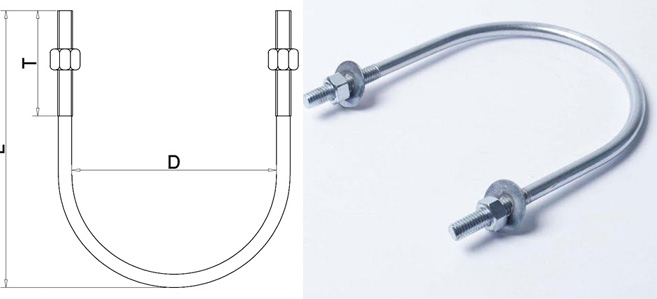

| SIZE | THREAD | DIAMETER (mm) | HEIGHT (mm) | THREAD LENGTH (mm) |
|---|---|---|---|---|
| D | L | T | ||
1/2" |
M10 |
21 |
55 |
38 |
3/4" |
M10 |
27 |
63 |
38 |
1" |
M10 |
36 |
66 |
38 |
1-1/4" |
M10 |
45 |
68 |
38 |
1-1/2" |
M10 |
53 |
75 |
38 |
2" |
M10 |
68 |
98 |
50 |
2-1/2" |
M10 |
80 |
117 |
50 |
3" |
M10 |
90 |
131 |
55 |
4" |
M10 |
121 |
151 |
60 |
6" |
M12 |
168 |
200 |
60 |
8" |
M16 |
220 |
260 |
75 |
10" |
M20 |
270 |
370 |
100 |
12" |
M20 |
324 |
420 |
100 |
14" |
M20 |
356 |
455 |
100 |
16" |
M20 |
406 |
505 |
100 |
18" |
M24 |
457 |
555 |
100 |
20" |
M24 |
508 |
605 |
100 |
24" |
M24 |
610 |
710 |
100 |
